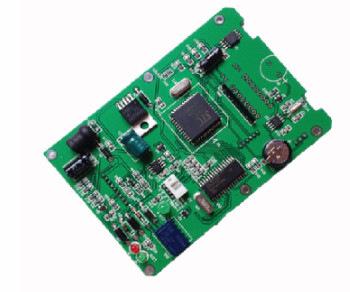

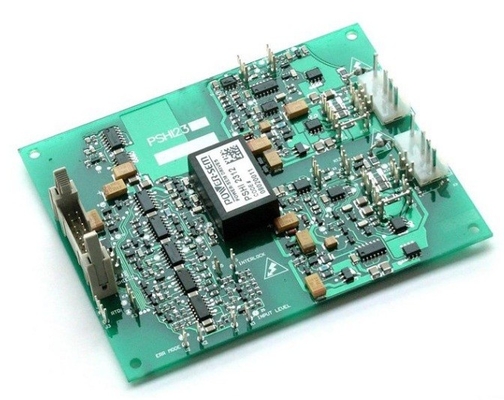

One Stop PCB Assembly Service PCBA testing ICT SMT FR4 Material

Large Image : One Stop PCB Assembly Service PCBA testing ICT SMT FR4 Material Get Best Price

Product Details:

Place of Origin:	china
Brand Name:	OEM
Model Number:	untitled

Payment & Shipping Terms:

Minimum Order Quantity:	package qty
Price:	contact sales for updated price
Packaging Details:	tape and reel
Delivery Time:	2 weeks
Payment Terms:	T/T
Supply Ability:	1000+

Contact Now

Detailed Product Description

Material:

UL Rank:

UL94V-0

Highlight:

One Stop PCB Assembly Service

PCB Assembly Service ICT SMT

FR4 printed circuit board assembly

PCBA on-stop service PCBA testing ICT SMT

1.PCB fabrication and PCB assembly;

2.PCBA programming & functional testing;

3.Electronic components purchasing service;

4.Enclosure molding & final assembly with labels,instructions,enclosure, boxes.


PCB Assembly Capabilities
Item	Technical Parameter
SMT Jointing Min. Space	0201mm
QFP Space	Pitch 0.3mm
Min. Package	201
Min. Size	22 inch(5050mm)
Max. Size	1422 inch(350550mm)
Placement Precision	0.01mm
Placement Precision	QFP, SOP, PLCC, BGA
Placement Capability	0805, 0603, 0402, 0201

PCB Lead time (workday(s))
	Single, Double-sided	4 layer	6 layer	Over 8 layer	HDI

Sample Lead time (Normal)	6	7	8	10-12	10-12
Sample Lead time (Faster)	48-72 hours	5	6	6-7	12
Mass production lead time	7-9	10-12	13-15	16	20
PCB Assembly Lead time
Sample Lead time	PCB Fab+Components Sourcing+PCBA=15 workdays
Mass production lead time	PCB Fab+Components Sourcing+PCBA=20 workdays
