Product Details:
Payment & Shipping Terms:
|

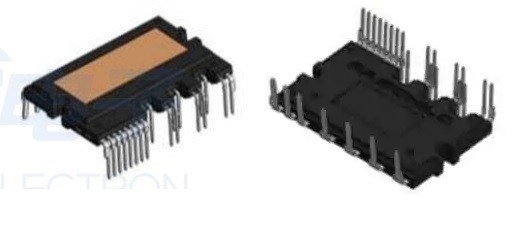

| MPN: | FAM65V05DF1 | MFR: | ONsemi Fairchild |
|---|---|---|---|
| UL. File No.: | E209204 | Package: | APM27-CAA |
| Highlight: | ONSEMI Intelligent Power Module IPM,Intelligent Power Module IPM 650V,FAM65V05DF1 |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | Yes |
| PPAP | Unknown |
| Type | IGBT |
| Configuration | Hex |
| Number of Phases | Three |
| Protection Type | Short Circuit/Under Voltage |
| Maximum Collector-Emitter Voltage (V) | 650 |
| Typical Collector Emitter Saturation Voltage (V) | 1.65 |
| Maximum Continuous Collector Current (A) | 50 |
| Maximum Isolation Voltage (Vrms) | 2500 |
| Maximum Collector-Emitter Cut-Off Current (mA) | 1.5 |
| Maximum Power Dissipation (W) | 333 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 175 |
| Packaging | Tube |
| Supplier Package | APM-CAA |
| Pin Count | 27 |
| Mounting | Through Hole |
| Package Height | 5.5 |
| Package Length | 44 |
| Package Width | 26.8 |
| PCB changed | 27 |
