| MPN: | SN65HVD77DGKR | Mfr: | Texas Instruments |
|---|---|---|---|
| Type: | Transceiver | Protocol: | RS422, RS485 |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542330001 |
| Automotive | No |
| PPAP | No |
| Function | Line Transceiver |
| Data Rate | 50Mbps |
| Transmitter Communication Type | RS-485 |
| Receiver Communication Type | RS-485 |
| Interface Standards | RS-485 |
| Data Transmission Topology | Multipoint |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Number of Receivers | 1 |
| Transmitter Signal Type | Differential |
| Receiver Signal Type | Differential |
| Number of Drivers per Line | 1 |
| Number of Receivers per Line | 1 |
| Driving Mode | 3-State |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Power Supply Type | Single |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 3.3 |
| Maximum Single Supply Voltage (V) | 3.6 |
| Maximum Supply Current (mA) | 1.1 |

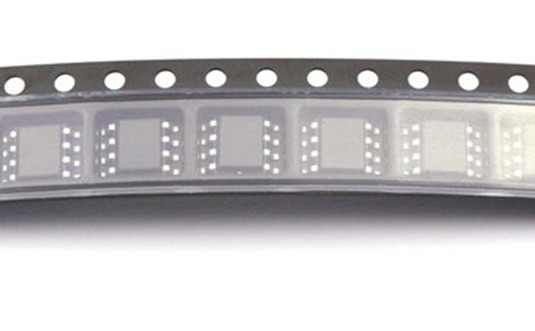

| Packaging | Tape and Reel |
| Pin Count | 8 |

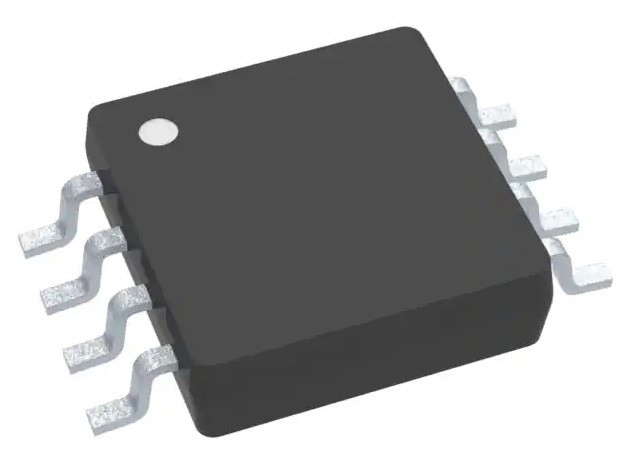

| Supplier Package | VSSOP |
| Standard Package Name | SOP |
| Mounting | Surface Mount |
| Package Height | 0.95(Max) |
| Package Length | 3.1(Max) |
| Package Width | 3.1(Max) |
| PCB changed | 8 |
| Lead Shape | Gull-wing |
