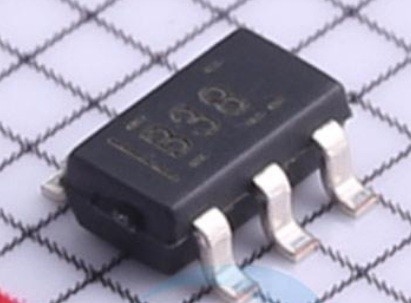

INA138NA/3K TI SP Amp Current Sense Amp Single 36V 5-Pin SOT-23 T/R

Large Image : INA138NA/3K TI SP Amp Current Sense Amp Single 36V 5-Pin SOT-23 T/R Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	TI
Model Number:	INA138NA/3K

Payment & Shipping Terms:

Minimum Order Quantity:	package qty
Price:	contact sales for updated price
Packaging Details:	tape and reel
Delivery Time:	2 weeks
Payment Terms:	T/T
Supply Ability:	1000+

Contact Now

Detailed Product Description

MPN:	INA138NA/3K	Mfr:	Texas Instruments
Function:	Current Monitor	Sensing Method:	High-Side
RoHS Status:	ROHS3 Compliant	Moisture Sensitivity Level (MSL):	2(1year)

Product Technical Specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Current Sense Amplifier
Number of Elements per Chip	1
Number of Channels per Chip	1
Minimum CMRR Range (dB)	95 to 105
Minimum CMRR (dB)	100
Maximum Input Offset Voltage (mV)	1@5V
Maximum Operating Supply Voltage (V)	36
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	28\|3\|5\|9\|12\|15\|18\|24
Maximum Single Supply Voltage (V)	36
Maximum Input Bias Current (uA)	2(Typ)@5V
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Packaging	Tape and Reel
Power Supply Type	Single
Pin Count	5
Standard Package Name	SOT-23
Supplier Package	SOT-23
Mounting	Surface Mount
Package Height	1.1
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	5
Lead Shape	Gull-wing
