| MPN: | L2N7002SLT1G | MFR: | LRC |
|---|---|---|---|
| Product Type: | MOSFET N-Channel | CASE: | SOT-23 |
| Highlight: | Electronic Diodes And Transistors N Channel,Electronic Diodes And Transistors SOT-23,L2N7002SLT1G 320mA |
||

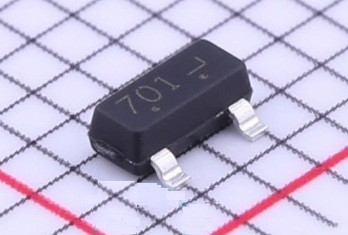

L2N7002SLT1G S-L2N7002SLT1G Small Signal MOSFET 380 mAmps, 60V N–Channel SOT-23
1. FEATURES
● We declare that the material of product compliance with RoHS requirements and Halogen Free.
● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
● ESD protected
● Low RDS(on)
2. APPLICATIONS
● Low side load switch
● Level shift circuits
● DC−DC converter
● Portable applications i.e. DSC, PDA, Cell Phone, etc.
| 3. DEVICE MARKING AND ORDERING INFORMATION | |||
| Device | Marking | Shipping | |
| L2N7002SLT1G | 701 | 3000/Tape&Reel | |
| L2N7002SLT3G | 701 | 10000/Tape&Reel | |
| 4. MAXIMUM RATINGS(Ta = 251) | |||
| Parameter | Symbol | Limits | Unit |
| Drain-Source Voltage | VDSS | 60 | V |
| Gate-Source Voltage | VGS | ±20 | V |
| Drain Current -Steady State TA = 25 C TA = 85 C -t<5s TA = 25 C TA = 85 C | ID | 320 230 380 270 | mA |
| Pulsed Drain Current (tp=10ps) | IDM | 1.5 | A |
| Source Current (Body Diode) | IS | 300 | mA |
