Product Details:
Payment & Shipping Terms:
|
| Product Category: | WiFi Module | Application: | Support Wi-Fi/Bluetooth Functionalities |
|---|---|---|---|
| WiFi Interface: | SDIO V2.0/v3.0 | BT Interface: | UART / PCM |
| Dimension: | L X W X H: 12 X 12 X 1.5 (typical) Mm | ||
| Highlight: | AMPAK AP6255 Wifi Module,AP6255 Wifi Module WiFi11ac,ampak wifi module |
||

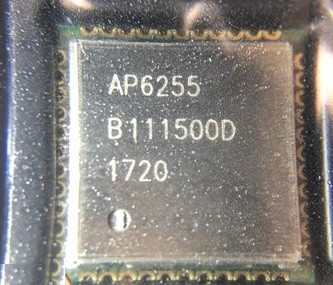

AP6255 AMPAK WiFi11ac +BluetoothV4.2 Module Industry
Features
l IEEE 802.11a/b/g/n/ac dual-band radio with virtual-simultaneous dual-band operation
l Single-stream spatial multiplexing up to 433.3 Mbps data rate.
l Supports 20, 40, 80 MHz channels with optional SGI(256 QAM modulation)
l Supports Bluetooth V4.2+EDR with integrated PA for Class 1.5 and Low Energy (BLE). l
Concurrent Bluetooth, and WLAN operation
l Simultaneous BT/WLAN receive with single antenna
l Supports standard SDIO v3.0 and backward compatible with SDIO v2.0 host interfaces.
- SDIO v3.0(4-bit) — up to 208 MHz clock rate in SDR104 mode
l BT host digital interface: - UART (up to 4 Mbps)
l IEEE Co-existence technologies are integrated die solution
l ECI — enhanced coexistence support, ability to coordinate BT SCO transmissions around WLAN receives
A simplified block diagram of the module is depicted in the figure below.
Deliverables
The following products and software will be part of the product.
l Module with packaging
l Evaluation Kits
l Software utility for integration, performance test.
l Product Datasheet.
l Agency certified pre-tested report with the adapter board.
