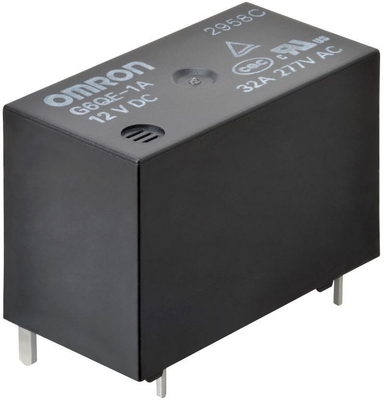

| MPN: | G6QE-1A DC12 | MFR: | OMRON |
|---|---|---|---|
| Category: | Relay | Size: | 30.5*20.5*16mm |
| Highlight: | OMRON Power Relay 12VDC,OMRON Power Relay SPST-NO,G6QE-1A DC12 THT |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Contact Arrangement | SPST-NO |
| Contact Form | 1 Form A |
| DC Coil Voltage (V) | 12 |
| Coil Current (mA) | 116.7 |
| Coil Resistance (Ohm) | 102.9 |
| Insulation Resistance (MOhm) | 1000 |
| Maximum Contact Resistance (MOhm) | 100 |
| Maximum Pick-Up Voltage | 8.4VDC |
| Minimum Dropout Voltage | 2.76VDC |
| Maximum AC Switching Voltage (V) | 227 |
| Maximum Switching Current (A) | 36 |
| Operate Time (ms) | 20 |
| Release Time (ms) | 10 |
| Electrical Life (Operations) | 50000 |
| Mechanical Life (Operations) | 1000000 |
| LED Indicator | No |
| Push to Test Button | No |
| Coil Suppression Diode | No |
| Relay Construction | Non-Latching |
| Mounting | Through Hole |
| Termination Style | PC Pin |
| Number of Terminals | 4 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 60 |
| Package Type | DIP |
| Product Weight (g) | 17 |
| Product Length (mm) | 30.5 |
| Product Depth (mm) | 16 |
| Product Height (mm) | 20.5 |
