Product Details:
Payment & Shipping Terms:
|

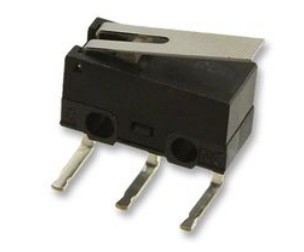

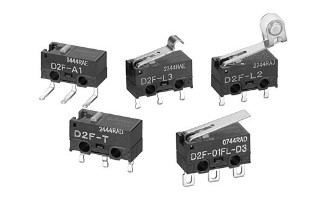

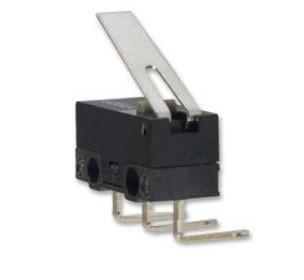

| MPN: | D2F-L-A1 | MFR: | OMRON |
|---|---|---|---|
| Category: | Switch | Size: | 12.8*5.8*6.5mm |
| Highlight: | OMRON Snap Action Micro Switch,Snap Action Micro Switch SPDT,d2f l a1 |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Switch Configuration | N.O./N.C. |
| Actuator Style | Hinge Lever |
| Pole Throw Configuration | SPDT |
| Maximum Current Rating (A) | 3@125VAC |
| Electrical Life (Cycles) | 30000 |
| Mechanical Life (Cycles) | 1000000 |
| Maximum Movement Differential (mm) | 0.5 |
| Mounting | Through Hole |
| Termination Style | PC Pins |
| Body Orientation | Right Angle |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Body Length (mm) | 12.8 |
| Body Depth (mm) | 6.5 |
| Body Height (mm) | 5.8 |
| Operating Force (N) | 0.78 |
