Product Details:
Payment & Shipping Terms:
|

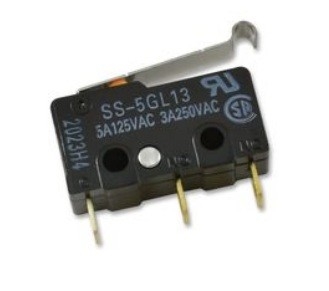

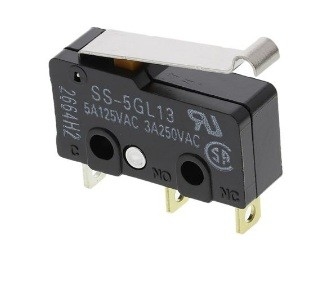

| MPN: | SS-5GL13 | MFR: | OMRON |
|---|---|---|---|
| Category: | Switch | Size: | 6.4*10.6*19.8mm |
| Highlight: | SMD DIP Switch Simulated,SMD DIP Switch 5A 250VAC,ss 5gl13 |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Switch Configuration | N.O./N.C. |
| Actuator Style | Simulated Hinge Lever |
| Pole Throw Configuration | SPDT |
| Maximum Current Rating (A) | 5@125VAC |
| Electrical Life (Cycles) | 200000 |
| Mechanical Life (Cycles) | 30000000 |
| Maximum Movement Differential (mm) | 0.8 |
| Mounting | Screw Mount |
| Termination Style | Solder |
| Body Orientation | Straight |
| Minimum Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 85 |
| Body Length (mm) | 19.8 |
| Body Depth (mm) | 6.4 |
| Body Height (mm) | 10.6 |
| Operating Force (N) | 0.49 |
