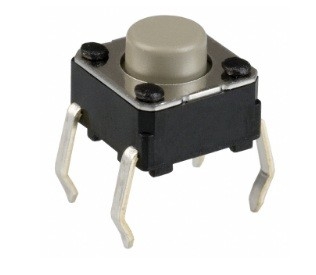

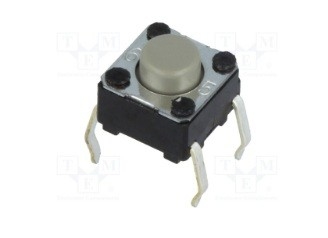

| MPN: | B3F-1022 | MFR: | OMRON |
|---|---|---|---|
| Category: | Switch | Size: | 6*7.7*4.3mm |
| Highlight: | 24VDC omron tactile switch B3F,0.05A omron tactile switch B3F,b3f 1022 |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8536.50.90.65 |
| Automotive | No |
| PPAP | No |
| Type | Miniature |
| Pole Throw Configuration | SPST |
| Actuator Style | Flat Round Button |
| Switch Configuration | N.O. |
| Maximum Current Rating (A) | 0.05@24VDC |
| Dielectric Strength | 500VAC |
| Minimum Insulation Resistance (MOhm) | 100 |
| Maximum Contact Resistance (MOhm) | 100 |
| Electrical Life (Cycles) | 300000 |
| Operating Force (N) | 1.47 |
| Actuator Color | Gray |
| Actuator Length (mm) | 0.9 |
| Number of Rows | 2 |
| Row Spacing (mm) | 6.5 |
| Mounting | Through Hole |
| Termination Style | PC Pins |
| Number of Terminals | 4 |
| Terminal Length (mm) | 3.5 |
| Terminal Pitch (mm) | 4.5 |
| Body Orientation | Straight |
| Minimum Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 70 |
| Packaging | Bag |
| Body Length (mm) | 6 |
| Body Depth (mm) | 6 |
| Body Height (mm) | 3.4 |
| Product Weight (g) | 0.25 |
| Product Length (mm) | 6 |
| Product Depth (mm) | 7.7 |
| Product Height (mm) | 4.3 |
| Contact Plating | Gold |
