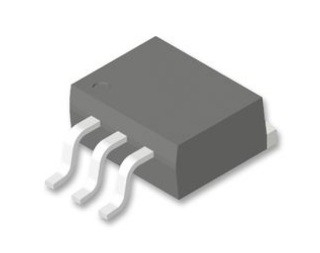

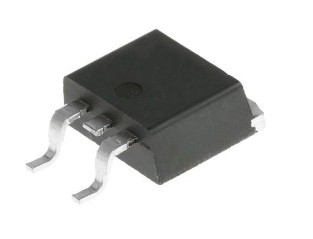

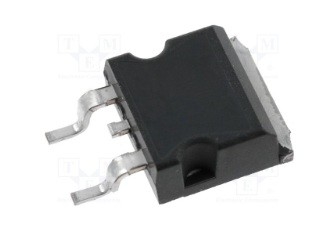

| MPN: | IPB200N25N3 | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 4.57*10.31*9.45mm |
| Highlight: | IPB200N25N3 High Power MOSFET,N Ch Mosfet 3 Pin,N Ch Mosfet 250V 64A |
||
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Configuration | Single |
| Process Technology | OptiMOS 3 |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 250 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Continuous Drain Current (A) | 64 |
| Maximum Drain Source Resistance (MOhm) | 20@10V |
| Typical Gate Charge @ Vgs (nC) | 64@10V |
| Typical Gate Charge @ 10V (nC) | 64 |
| Typical Input Capacitance @ Vds (pF) | 5340@100V |
| Maximum Power Dissipation (mW) | 300000 |
| Typical Fall Time (ns) | 12 |
| Typical Rise Time (ns) | 20 |
| Typical Turn-Off Delay Time (ns) | 45 |
| Typical Turn-On Delay Time (ns) | 18 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 175 |
| Packaging | Tape and Reel |
| Pin Count | 3 |
| Standard Package Name | TO-263 |
| Supplier Package | D2PAK |
| Mounting | Surface Mount |
| Package Height | 4.57(Max) |
| Package Length | 10.31(Max) |
| Package Width | 9.45(Max) |
| PCB changed | 2 |
| Tab | Tab |
