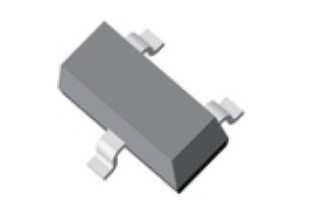

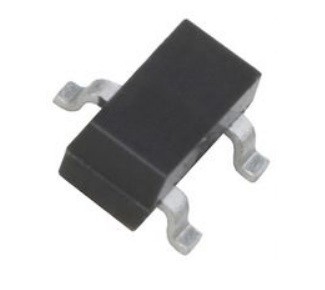

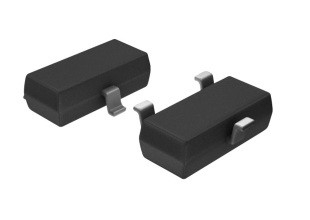

| MPN: | IRLML2803TRPBF | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 1.02*3.04*1.4mm |
| Highlight: | High Power MOSFET SOT-23 T/R,High Power MOSFET Si 30V,IRLML2803TRPBF |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Material | Si |
| Configuration | Single |
| Process Technology | HEXFET |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 30 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Gate Threshold Voltage (V) | 1(Min) |
| Maximum Continuous Drain Current (A) | 1.2 |
| Maximum Drain Source Resistance (MOhm) | 250@10V |
| Typical Gate Charge @ Vgs (nC) | 3.3@10V |
| Typical Gate Charge @ 10V (nC) | 3.3 |
| Typical Gate to Drain Charge (nC) | 1.1 |
| Typical Gate to Source Charge (nC) | 0.48 |
| Typical Reverse Recovery Charge (nC) | 22 |
| Typical Input Capacitance @ Vds (pF) | 85@25V |
| Typical Output Capacitance (pF) | 34 |
| Maximum Power Dissipation (mW) | 540 |
| Typical Fall Time (ns) | 1.7 |
| Typical Rise Time (ns) | 4 |
| Typical Turn-Off Delay Time (ns) | 9 |
| Typical Turn-On Delay Time (ns) | 3.9 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |
| Pin Count | 3 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Mounting | Surface Mount |
| Package Height | 1.02(Max) |
| Package Length | 3.04(Max) |
| Package Width | 1.4(Max) |
| PCB changed | 3 |
| Lead Shape | Gull-wing |
