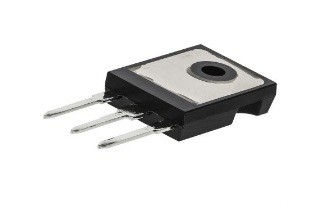

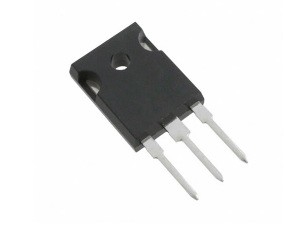

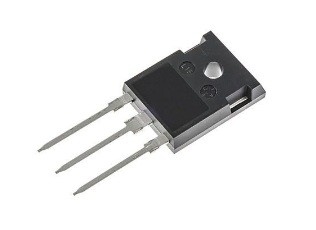

Product Details:
Payment & Shipping Terms:
|
| MPN: | IRFP4368PbF | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 20.7*15.87*5.31MM |
| Highlight: | Infineon Power MOSFET 75V 350A,Infineon Power MOSFET N Channel,IRFP4368PbF |
||
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Material | Si |
| Configuration | Single |
| Process Technology | HEXFET |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 75 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Continuous Drain Current (A) | 350 |
| Maximum Drain Source Resistance (MOhm) | 1.85@10V |
| Typical Gate Charge @ Vgs (nC) | 380@10V |
| Typical Gate Charge @ 10V (nC) | 380 |
| Typical Input Capacitance @ Vds (pF) | 19230@50V |
| Maximum Power Dissipation (mW) | 520000 |
| Typical Fall Time (ns) | 260 |
| Typical Rise Time (ns) | 220 |
| Typical Turn-Off Delay Time (ns) | 170 |
| Typical Turn-On Delay Time (ns) | 43 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 175 |
| Packaging | Tube |
| Pin Count | 3 |
| Standard Package Name | TO-247 |
| Supplier Package | TO-247AC |
| Mounting | Through Hole |
| Package Height | 20.7(Max) |
| Package Length | 15.87(Max) |
| Package Width | 5.31(Max) |
| PCB changed | 3 |
| Tab | Tab |
| Lead Shape | Through Hole |
