Product Details:
Payment & Shipping Terms:
|

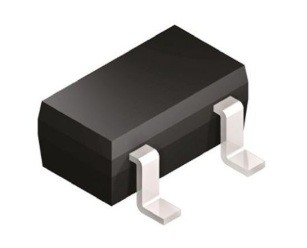

| MPN: | IRLML6402TRPBF | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 1.02*3.04*1.4mm |
| Highlight: | High Power MOSFET Si 20V,High Power MOSFET P-CH,IRLML6402TRPBF |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Material | Si |
| Configuration | Single |
| Process Technology | HEXFET |
| Channel Mode | Enhancement |
| Channel Type | P |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 20 |
| Maximum Gate Source Voltage (V) | ±12 |
| Maximum Gate Threshold Voltage (V) | 1.2 |
| Operating Junction Temperature (°C) | -55 to 150 |
| Maximum Continuous Drain Current (A) | 3.7 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (MOhm) | 65@4.5V |
| Typical Gate Charge @ Vgs (nC) | 8@5V |
| Typical Gate to Drain Charge (nC) | 2.8 |
| Typical Gate to Source Charge (nC) | 1.2 |
| Typical Reverse Recovery Charge (nC) | 11 |
| Typical Input Capacitance @ Vds (pF) | 633@10V |
| Typical Reverse Transfer Capacitance @ Vds (pF) | 110@10V |
| Minimum Gate Threshold Voltage (V) | 0.4 |
| Typical Output Capacitance (pF) | 145 |
| Maximum Power Dissipation (mW) | 1300 |
| Typical Fall Time (ns) | 381 |
| Typical Rise Time (ns) | 48 |
| Typical Turn-Off Delay Time (ns) | 588 |
| Typical Turn-On Delay Time (ns) | 350 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |
| Maximum Pulsed Drain Current @ TC=25°C (A) | 22 |
| Maximum Junction Ambient Thermal Resistance on PCB (°C/W) | 100 |
| Typical Gate Plateau Voltage (V) | 1.9 |
| Typical Reverse Recovery Time (ns) | 29 |
| Maximum Diode Forward Voltage (V) | 1.2 |
| Typical Gate Threshold Voltage (V) | 0.55 |
| Maximum Positive Gate Source Voltage (V) | 12 |
| Pin Count | 3 |
| Standard Package Name | SOT |
| Supplier Package | SOT-23 |
| Mounting | Surface Mount |
| Package Height | 1.02(Max) |
| Package Length | 3.04(Max) |
| Package Width | 1.4(Max) |
| PCB changed | 3 |
| Lead Shape | Gull-wing |
