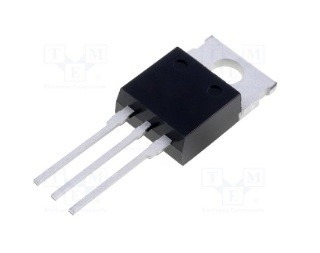

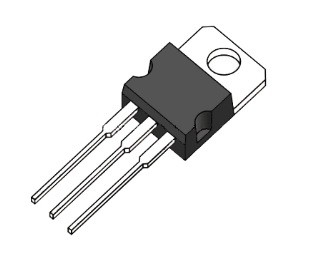

| MPN: | IRFB7545PBF | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 9.02*10.67*4.83mm |
| Highlight: | N-CH IRFB7545 Mosfet Pinout,IRFB7545 Mosfet Pinout 60V,IRFB7545PBF |
||
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Configuration | Single |
| Process Technology | HEXFET |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 60 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Gate Threshold Voltage (V) | 3.7 |
| Maximum Continuous Drain Current (A) | 95 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (MOhm) | 5.9@10V |
| Typical Gate Charge @ Vgs (nC) | 75@10V |
| Typical Gate Charge @ 10V (nC) | 75 |
| Typical Input Capacitance @ Vds (pF) | 4010@25V |
| Maximum Power Dissipation (mW) | 125000 |
| Typical Fall Time (ns) | 43 |
| Typical Rise Time (ns) | 72 |
| Typical Turn-Off Delay Time (ns) | 44 |
| Typical Turn-On Delay Time (ns) | 12 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 175 |
| Packaging | Tube |
| Supplier Package | TO-220AB |
| Pin Count | 3 |
| Standard Package Name | TO-220 |
| Mounting | Through Hole |
| Package Height | 9.02(Max) |
| Package Length | 10.67(Max) |
| Package Width | 4.83(Max) |
| PCB changed | 3 |
| Tab | Tab |
| Lead Shape | Through Hole |
