TPS63020DSJR TI Conv DC-DC 1.8V to 5.5V Synchronous Step Down/Synchronous Step Up Single-Out 1.2V to 5.5V 3A 14-Pin VSON

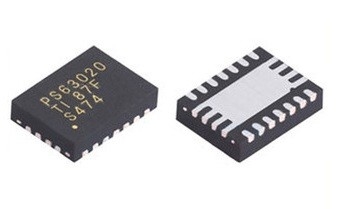

Large Image : TPS63020DSJR TI Conv DC-DC 1.8V to 5.5V Synchronous Step Down/Synchronous Step Up Single-Out 1.2V to 5.5V 3A 14-Pin VSON Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	TI
Model Number:	TPS63020DSJR

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Pls contact sales for updated price
Packaging Details:	3000
Delivery Time:	7-15 days
Payment Terms:	paypal, T/T
Supply Ability:	20K

Contact Now

Detailed Product Description

MPN:	TPS63020DSJR	MFR:	TI
Switching Frequency (kHz):	2200 To 2600	Packaging:	Tape And Reel

Product Technical Specifications

EU RoHS

Compliant

ECCN (US)

EAR99

Part Status

Active

HTS

8542330001

Automotive

PPAP

Type

Synchronous Step Down|Synchronous Step Up

Isolation

Non-Isolated

Output Type

Adjustable

Switching Frequency (kHz)

2200 to 2600

Switching Regulator

Yes

Number of Outputs

Output Voltage (V)

1.2 to 5.5

Maximum Output Current (A)

Minimum Input Voltage (V)

1.8

Maximum Input Voltage (V)

5.5

Operating Supply Voltage (V)

1.8 to 5.5

Typical Quiescent Current (uA)

Line Regulation

0.5%(Typ)

Load Regulation

0.5%(Typ)

Efficiency (%)

Minimum Operating Temperature (°C)

-40

Maximum Operating Temperature (°C)

125

Packaging

Tape and Reel

Pin Count

Standard Package Name

SON

Supplier Package

VSON EP

Mounting

Surface Mount

Package Height

0.95(Max)

Package Length

4.15(Max)

Package Width

3.15(Max)

PCB changed

Lead Shape

No Lead
