SN74LVC1G14DCKR TI Inverter Schmitt Trigger 1-Element CMOS 5-Pin SC-70 T/R

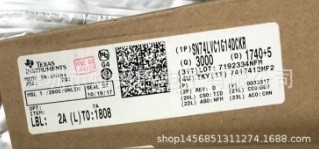

Large Image : SN74LVC1G14DCKR TI Inverter Schmitt Trigger 1-Element CMOS 5-Pin SC-70 T/R Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	TI
Model Number:	SN74LVC1G14DCKR

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Pls contact sales for updated price
Packaging Details:	3000
Delivery Time:	7-15 days
Payment Terms:	paypal, T/T
Supply Ability:	25K

Contact Now

Detailed Product Description

MPN:	SN74LVC1G14DCKR	MFR:	TI
Logic Function:	Inverter Schmitt Trigger	Absolute Propagation Delay Time (ns):	11
Output Type:	Schmitt Trigger	Packaging:	Tape And Reel

Product Technical Specifications

EU RoHS

Compliant

ECCN (US)

EAR99

Part Status

Active

HTS

8542330001

SVHC

Yes

Automotive

PPAP

Logic Family

LVC

Logic Function

Inverter Schmitt Trigger

Number of Elements per Chip

Maximum Propagation Delay Time @ Maximum CL (ns)

5.5@3V to 3.6V|5@4.5V to 5.5V

Absolute Propagation Delay Time (ns)

Process Technology

CMOS

Output Type

Schmitt Trigger

Maximum Low Level Output Current (mA)

Maximum High Level Output Current (mA)

-32

Minimum High Level Output Voltage (V)

1.2

Maximum Low Level Output Voltage (V)

0.7

Minimum Operating Supply Voltage (V)

1.65

Typical Operating Supply Voltage (V)

1.8|2.5|3.3|5

Maximum Operating Supply Voltage (V)

5.5

Maximum Quiescent Current (uA)

Propagation Delay Test Condition (pF)

Minimum Operating Temperature (°C)

-40

Maximum Operating Temperature (°C)

125

Packaging

Tape and Reel

Pin Count

Supplier Package

SC-70

Standard Package Name

SOT-323

Mounting

Surface Mount

Package Height

1(Max)

Package Length

2.15(Max)

Package Width

1.4(Max)

PCB changed

Lead Shape

Gull-wing
