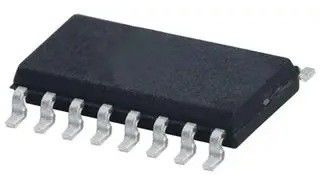

ADM2682EBRIZ ADI Single Transmitter/Receiver RS-422/RS-485 16-Pin SOIC W Tube

Large Image : ADM2682EBRIZ ADI Single Transmitter/Receiver RS-422/RS-485 16-Pin SOIC W Tube Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	ADI
Model Number:	ADM2682EBRIZ

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Pls contact sales for updated price
Packaging Details:	400
Delivery Time:	7-15 days
Payment Terms:	paypal, T/T
Supply Ability:	10K

Contact Now

Detailed Product Description

MPN:	ADM2682EBRIZ	MFR:	ADI
Transmitter Communication Type:	RS-422\|RS-485	Packaging:	Tube

Product Technical Specifications

EU RoHS

Compliant

ECCN (US)

EAR99

Part Status

Active

HTS

8542330001

Automotive

PPAP

Function

Line Transceiver

Data Rate

16Mbps(Min)

Transmitter Communication Type

RS-422|RS-485

Receiver Communication Type

RS-422|RS-485

Interface Standards

ANSI/TIA/EIA-485-A-98|ISO 8482:1987(E)

Data Transmission Topology

Multidrop|Multipoint

Number of Transceivers

Number of Transmitters

Number of Receivers

Transmitter Signal Type

Differential

Receiver Signal Type

Differential

Process Technology

iCoupler

Number of Drivers per Line

1@RS-422|32@RS-485

Number of Receivers per Line

1@RS-422|32@RS-485

Driving Mode

3-State

Number of Transmitter Enables

Number of Receiver Enables

Minimum Operating Temperature (°C)

-40

Maximum Operating Temperature (°C)

Power Supply Type

Single

Minimum Single Supply Voltage (V)

Typical Single Supply Voltage (V)

3.3|5

Maximum Single Supply Voltage (V)

5.5

Maximum Supply Current (mA)

200

Isolation

Yes

Packaging

Tube

Pin Count

Supplier Package

SOIC W

Standard Package Name

SOP

Mounting

Surface Mount

Package Height

2.35(Max)

Package Length

13(Max)

Package Width

7.6(Max)

PCB changed

Lead Shape

Gull-wing

Tag:
