FDS6812A FAIRCHILD Trans MOSFET N-CH 20V 6.7A 8-Pin SOIC N T/R

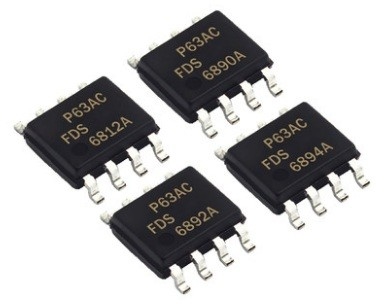

Large Image : FDS6812A FAIRCHILD Trans MOSFET N-CH 20V 6.7A 8-Pin SOIC N T/R Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	FAIRCHILD
Model Number:	FDS6812A

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Pls contact sales for updated price
Packaging Details:	2500
Delivery Time:	7-15 days
Payment Terms:	paypal, T/T
Supply Ability:	10K

Contact Now

Detailed Product Description

MPN:	FDS6812A	MFR:	FAIRCHILD
Product Category:	Power MOSFET	Standard Package Name:	SOP8

Product Technical Specifications

EU RoHS

Compliant

ECCN (US)

EAR99

Part Status

Obsolete

Automotive

PPAP

Product Category

Power MOSFET

Configuration

Dual Dual Drain

Channel Mode

Enhancement

Channel Type

Number of Elements per Chip

Maximum Drain Source Voltage (V)

Maximum Gate Source Voltage (V)

±12

Maximum Continuous Drain Current (A)

6.7

Maximum Drain Source Resistance (MOhm)

22@4.5V

Typical Gate Charge @ Vgs (nC)

12@4.5V

Typical Input Capacitance @ Vds (pF)

1082@10V

Maximum Power Dissipation (mW)

2000

Typical Fall Time (ns)

Typical Rise Time (ns)

Typical Turn-Off Delay Time (ns)

Typical Turn-On Delay Time (ns)

Minimum Operating Temperature (°C)

-55

Maximum Operating Temperature (°C)

150

Packaging

Tape and Reel

Supplier Package

SOIC N

Pin Count

Standard Package Name

SOP

Mounting

Surface Mount

Package Height

1.65(Max)

Package Length

4.9

Package Width

3.9

PCB changed

Lead Shape

Gull-wing
