| Product Category: | Power MOSFET | Mfr: | Texas Instruments |
|---|---|---|---|
| MPN: | CSD75207W15 | Package: | BGA |
| Highlight: | TI Transistor MOSFET Array,Transistor MOSFET Array Dual P CH,CSD75207W15 |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Configuration | Dual |
| Process Technology | NexFET |
| Channel Mode | Enhancement |
| Channel Type | P |
| Number of Elements per Chip | 2 |
| Maximum Gate Source Voltage (V) | -6 |
| Maximum Gate Threshold Voltage (V) | 1.1 |
| Maximum Continuous Drain Current (A) | 3.9 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (MOhm) | 54@4.5V |
| Typical Gate Charge @ Vgs (nC) | 2.9 |
| Typical Input Capacitance @ Vds (pF) | 458 |
| Maximum Power Dissipation (mW) | 700 |
| Typical Fall Time (ns) | 16 |
| Typical Rise Time (ns) | 8.6 |
| Typical Turn-Off Delay Time (ns) | 32.1 |
| Typical Turn-On Delay Time (ns) | 12.8 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |

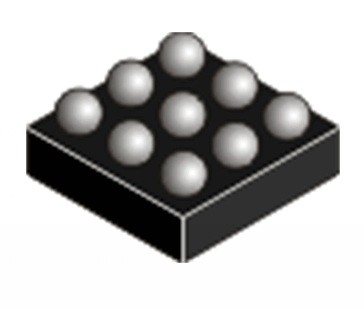

| Supplier Package | DSBGA |
| Pin Count | 9 |
| Standard Package Name | BGA |
| Mounting | Surface Mount |
| Package Height | 0.28(Max) |
| Package Length | 1.5 |
| Package Width | 1.5 |
| PCB changed | 9 |
| Lead Shape | Ball |
