Product Details:
Payment & Shipping Terms:
|

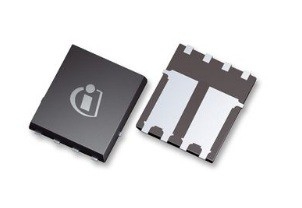

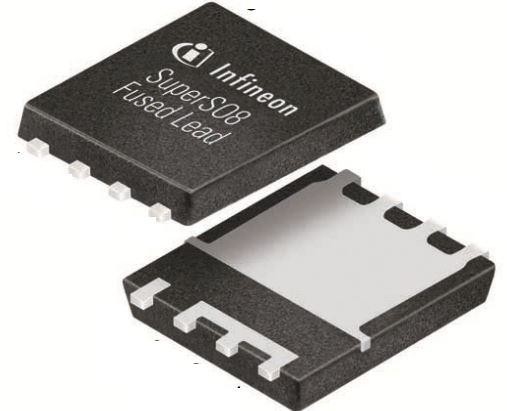

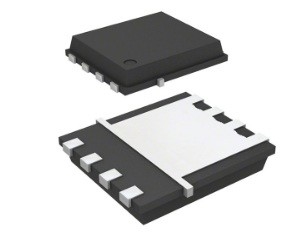

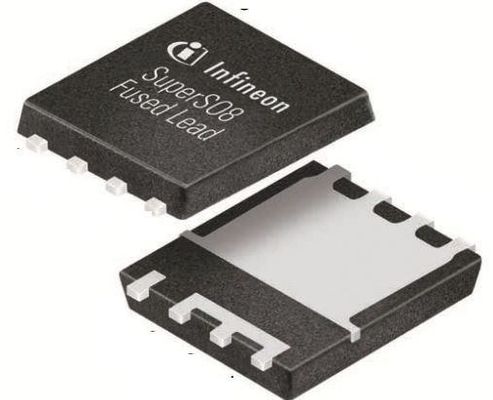

| MPN: | BSC123N08NS3G | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 1*5.15*5.9mm |
| Highlight: | High Power MOSFET 80V,High Power MOSFET 11A,BSC123N08NS3G |
||
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Unknown |
| PPAP | Unknown |
| Product Category | Power MOSFET |
| Process Technology | OptiMOS |
| Configuration | Single Quad Drain Triple Source |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 80 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Continuous Drain Current (A) | 11 |
| Maximum Drain Source Resistance (MOhm) | 12.3@10V |
| Typical Gate Charge @ Vgs (nC) | 19@10V |
| Typical Gate Charge @ 10V (nC) | 19 |
| Typical Input Capacitance @ Vds (pF) | 1430@40V |
| Maximum Power Dissipation (mW) | 2500 |
| Typical Fall Time (ns) | 4 |
| Typical Rise Time (ns) | 18 |
| Typical Turn-Off Delay Time (ns) | 19 |
| Typical Turn-On Delay Time (ns) | 12 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Pin Count | 8 |
| Standard Package Name | SON |
| Supplier Package | TDSON EP |
| Mounting | Surface Mount |
| Package Height | 1 |
| Package Length | 5.15 |
| Package Width | 5.9 |
| PCB changed | 8 |
| Lead Shape | No Lead |
