| MPN: | BSP170PH6327XTSA1 | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 6.5*3.5*1.6mm |
| Highlight: | BSP170PH6327XTSA1 High Power MOSFET,High Power MOSFET Automotive,p ch mosfet switch 4 Pin |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | Yes |
| PPAP | Unknown |
| Product Category | Small Signal |
| Configuration | Single Dual Drain |
| Process Technology | SIPMOS |
| Channel Mode | Enhancement |
| Channel Type | P |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 60 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Gate Threshold Voltage (V) | 4 |
| Maximum Continuous Drain Current (A) | 1.9 |
| Maximum Gate Source Leakage Current (nA) | 100 |
| Maximum IDSS (uA) | 1 |
| Maximum Drain Source Resistance (mOhm) | 300@10V |
| Typical Gate Charge @ Vgs (nC) | 10@10V |
| Typical Gate Charge @ 10V (nC) | 10 |
| Typical Input Capacitance @ Vds (pF) | 328@25V |
| Maximum Power Dissipation (mW) | 1800 |
| Typical Fall Time (ns) | 60 |
| Typical Rise Time (ns) | 28 |
| Typical Turn-Off Delay Time (ns) | 92 |
| Typical Turn-On Delay Time (ns) | 14 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Supplier Temperature Grade | Automotive |
| Packaging | Tape and Reel |

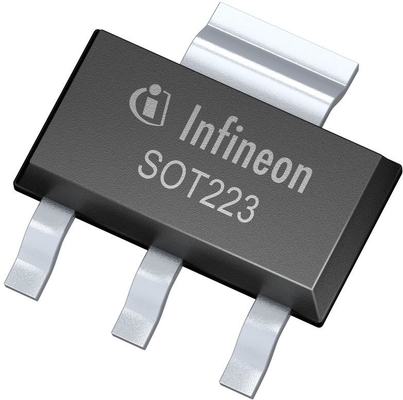

| Supplier Package | SOT-223 |
| Pin Count | 4 |
| Standard Package Name | SOT |
| Mounting | Surface Mount |
| Package Height | 1.6 |
| Package Length | 6.5 |
| Package Width | 3.5 |
| PCB changed | 3 |
| Tab | Tab |
| Lead Shape | Gull-wing |
