| MPN: | BSS308PEH6327XTSA1 | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 1*1.3*2.9mm |
| Highlight: | High Power MOSFET 30V,High Power MOSFET 2A,BSS308PEH6327XTSA1 |
||
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | Yes |
| PPAP | Unknown |
| Product Category | Small Signal |
| Configuration | Single |
| Process Technology | OptiMOS |
| Channel Mode | Enhancement |
| Channel Type | P |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 30 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Continuous Drain Current (A) | 2 |
| Maximum Drain Source Resistance (MOhm) | 80@10V |
| Typical Gate Charge @ Vgs (nC) | 5@10V |
| Typical Gate Charge @ 10V (nC) | 5 |
| Typical Input Capacitance @ Vds (pF) | 376@15V |
| Maximum Power Dissipation (mW) | 500 |
| Typical Fall Time (ns) | 2.8 |
| Typical Rise Time (ns) | 7.7 |
| Typical Turn-Off Delay Time (ns) | 15.3 |
| Typical Turn-On Delay Time (ns) | 5.6 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Packaging | Tape and Reel |

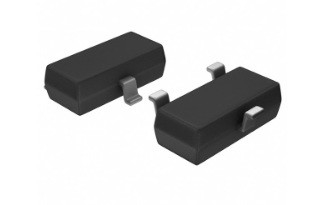

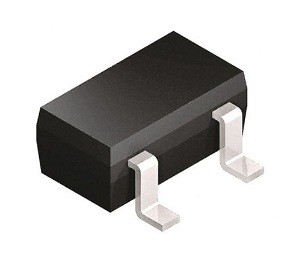

| Supplier Package | SOT-23 |
| Pin Count | 3 |
| Standard Package Name | SOT-23 |
| Mounting | Surface Mount |
| Package Height | 1(Max) |
| Package Length | 2.9 |
| Package Width | 1.3 |
| PCB changed | 3 |
| Lead Shape | Gull-wing |
