Product Details:
Payment & Shipping Terms:
|

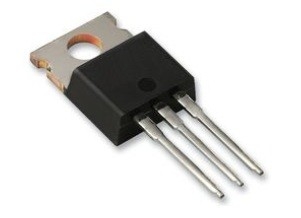

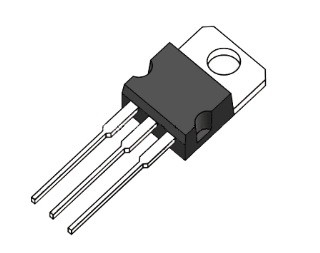

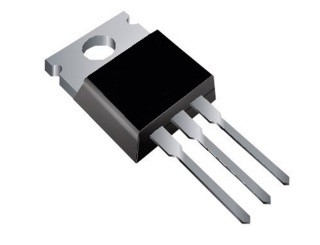

| MPN: | IRFB4115PBF | MFR: | Infineon |
|---|---|---|---|
| Category: | Mosfet | Size: | 9.02*10.67*4.83mm |
| Highlight: | IRFB4115PBF High Power MOSFET,High Power MOSFET Si 150V,irf4115 mosfet |
||
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Product Category | Power MOSFET |
| Material | Si |
| Configuration | Single |
| Process Technology | HEXFET |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 150 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Continuous Drain Current (A) | 104 |
| Maximum Drain Source Resistance (MOhm) | 11@10V |
| Typical Gate Charge @ Vgs (nC) | 77@10V |
| Typical Gate Charge @ 10V (nC) | 77 |
| Typical Input Capacitance @ Vds (pF) | 5270@50V |
| Maximum Power Dissipation (mW) | 380000 |
| Typical Fall Time (ns) | 39 |
| Typical Rise Time (ns) | 73 |
| Typical Turn-Off Delay Time (ns) | 41 |
| Typical Turn-On Delay Time (ns) | 18 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 175 |
| Packaging | Tube |
| Pin Count | 3 |
| Standard Package Name | TO-220 |
| Supplier Package | TO-220AB |
| Mounting | Through Hole |
| Package Height | 9.02(Max) |
| Package Length | 10.67(Max) |
| Package Width | 4.83(Max) |
| PCB changed | 3 |
| Tab | Tab |
| Lead Shape | Through Hole |
